Technical
Registered: Indonesia

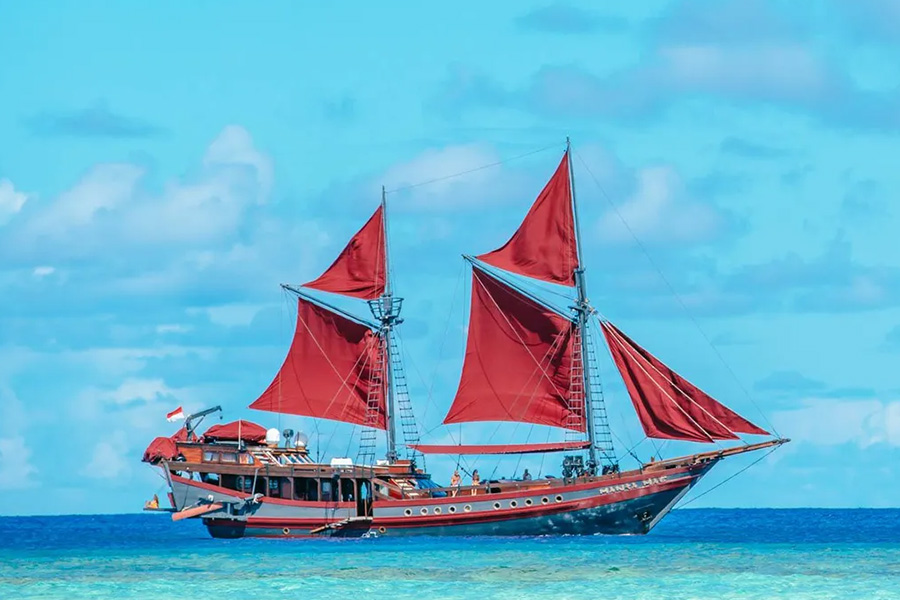

Style: Phinisi
Built: Bira, South Sulawesi Oct. 2011-Apr. 2014 by Haji Baso
Type: Wooden hulled schooner
Flag: Indonesian
Length
over all: 100 feet (30.50 metres)
Beam: 21.9 feet (6.67
metres)
Draft: 8.83 feet (2.69 meters)
Total displacement:
120 tons
Main engine: Mitsubishi 8 DC9-Twin Turbo 350 HP
Fuel
capacity: 7,000 litres
Desalinator production: 6,000 litres per day
Sails: 2 masts, 7 sails -450 sqm sails area
Cruising speed: 8
knots
Gensets: 1 Yanmar 50 KV, 1 Mitsubishi 35 KV,
1 Isuzu 16,2 KV 1KRISBOW
KW 20-08
Tender: 1 RIB length 5.2 m outboard engine 100 HP,
1 RIB length
4.6 m outboard engine 50 HP,
1 RIB length 4.0 m outboard engine 25 HP
Communication: VHF-Icom M304 & Samyang,
Satellite phone-Byru Marine, PC comp EC
Navigation: Radar Furuno 1715 –20 nm, GPS-Furuno GP32
Echo
sounder: Furuno FC620, Echo pilot 3D
Range: 1,000 nm
Fuel:
7,000 litres Diesel –1,000 litres petrol
Propulsion
Engine Make: Mitsubishi
Engine Model: 8 DC9-Twin
Turbo 350HP
Total Power: 350hp
Engine Type: Inboard
Drive Type: Direct Drive
Fuel Type: Diesel
